WOLF 3

DEFTECH

WOLF

Offering the largest carrying capacity in it's class.
Fully customizable with our wide range of options.

6.7L Inline six-cylinder turbo-diesel engine

120 km/h top speed, range of more than 1 000km

Blast protection of Level 1 STANAG 4569 AEP-55

Ballistic protection up to Level 3 STANAG 4569 AEP-55

WOLF 2

DEFTECH

WOLF

Offering the largest carrying capacity in it's class.
Fully customizable with our wide range of options.

6.7L Inline six-cylinder turbo-diesel engine

120 km/h top speed, range of more than 1 000km

Blast protection of Level 1 STANAG 4569 AEP-55

Ballistic protection up to Level 3 STANAG 4569 AEP-55

WOLF 4

DEFTECH

WOLF

Offering the largest carrying capacity in it's class.
Fully customizable with our wide range of options.

6.7L Inline six-cylinder turbo-diesel engine

120 km/h top speed, range of more than 1 000km

Blast protection of Level 1 STANAG 4569 AEP-55

Ballistic protection up to Level 3 STANAG 4569 AEP-55

next arrow
previous arrow
  • Base of the vehicle - Permanent 4x4, independent suspension module
  • Engine - 6.7L Inline six-cylinder Turbo-diesel
  • Transmission - Automatic 6-speed
  • Max. speed - 120 km/h (depends on tire limitations)
  • Brakes - Two-circuit disc brakes, ABS, Hydraulic, exhaust brake
  • Manual reduction gearbox (4x4)
  • Hydro-mechanic power steering
  • Wheels - 365 x 80 R20
  • A/C - Front and rear unit
  • Operational range - more than 1 000 km
  • Temparture operational range - -20°C / +65°C
  • 8 seats - driver & commander + 6 for crew
  • Front & rear hooks for towing
  • Hooks for carrying by helicopter
  • Side and rear footsteps
  • Outside handlers
  • Ballistic windows
  • 3-point seatbelts
  • Side-view and overview cameras
  • Rear camera
  • Fire extinguisher for engine bay
  • Front and rear stabilizers
  • Composite armor solution corresponding to desired ballistic protection composed of HH, VHH steel plates, ballistic aluminum and spoil-liners
  • Blast protection of Level 1 according to STANAG 4569 AEP-55
  • Standard ballistic protection of Level 2 according to STANAG 4569 AEP-55 (VPAM PM8, GOST BR 5a)
  • Add-on ballistic protection up to Level 3 according to STANAG 4569 AEP-55 (VPAM PM 11, GOST BR 6a, NIJ III)
  • Complex protection of powertrain system and chassis.

Military 360 ° mechanical turret with protection plates + harness for gunner

Automatic turret

Rotatable roof hatch with machine gun rack

Roof hatches

RPG net

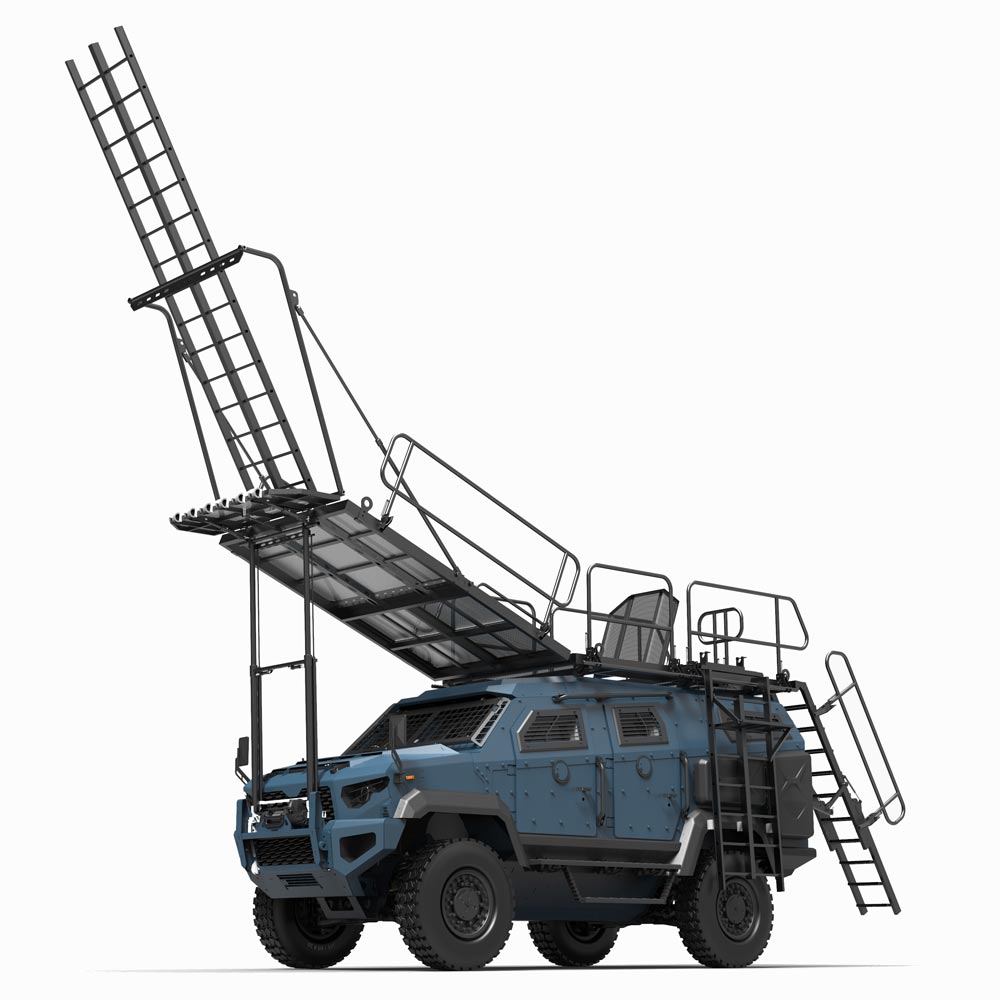

WOLF Armored Vehicle - Vertical Intervention System

Vertical Intervention System

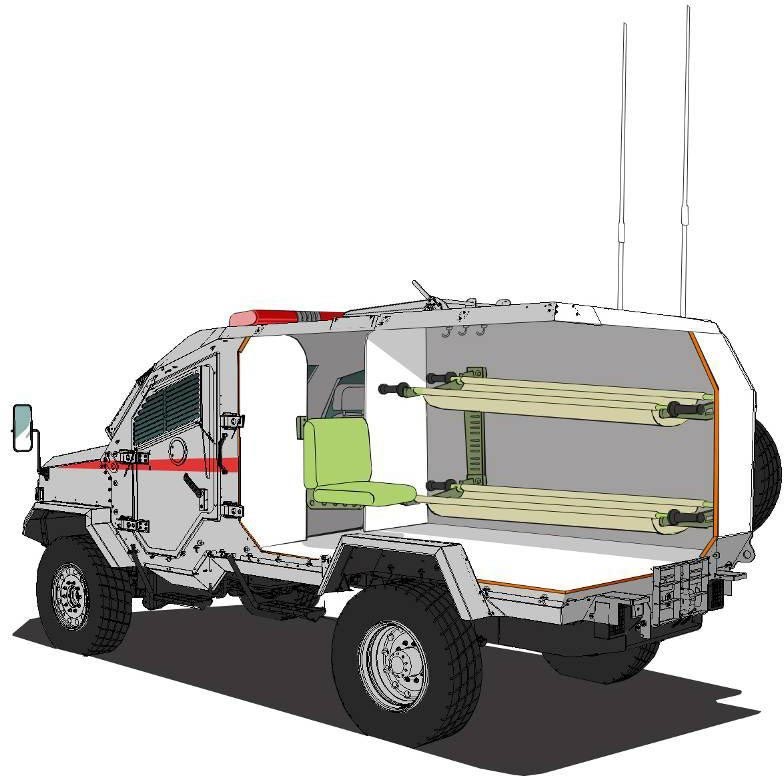

Ambulance

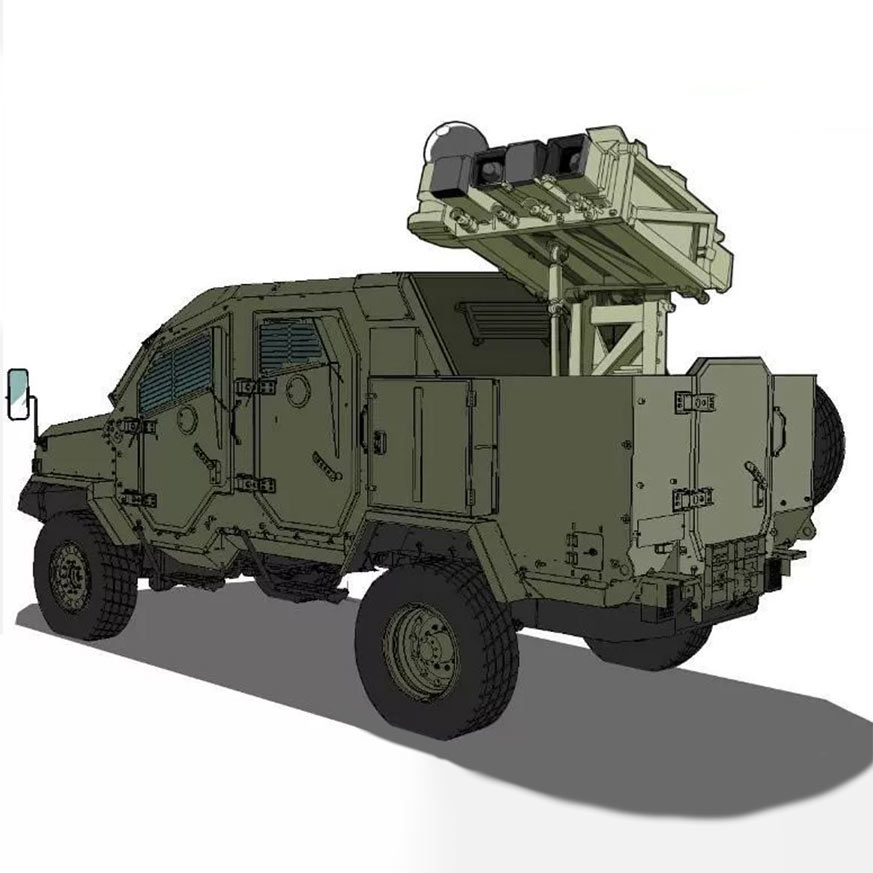

Spike Launchers Carrier

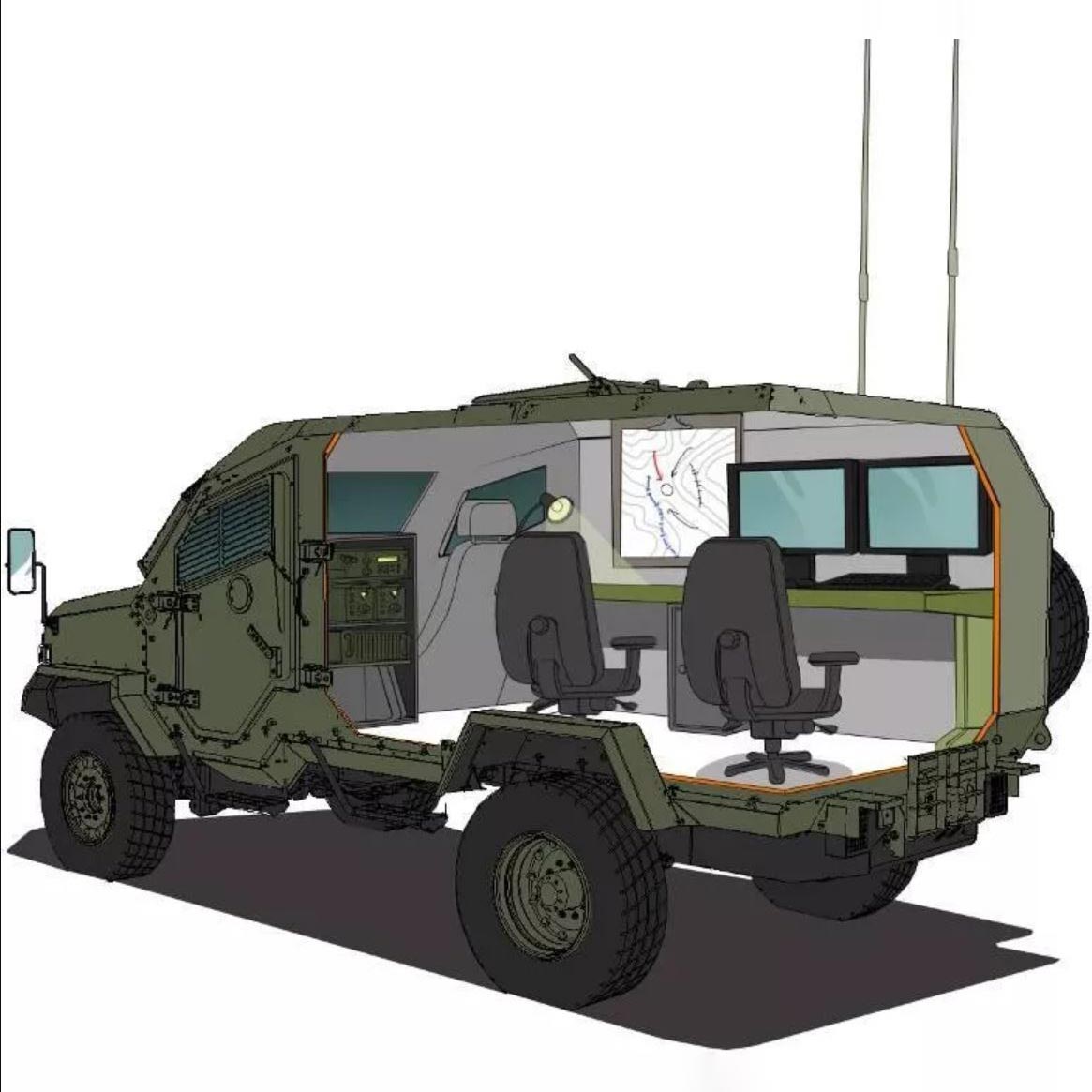

Command Vehicle

  • Operating manual
  • Instructions for the operation and maintenance of selected equipment
  • Instructions for running the technique
  • List of spare parts, tools and accessories (equipment)
  • Guidelines for complaints
  • Certificate of quality and completeness of the vehicle
  • Warranty
  • Service book

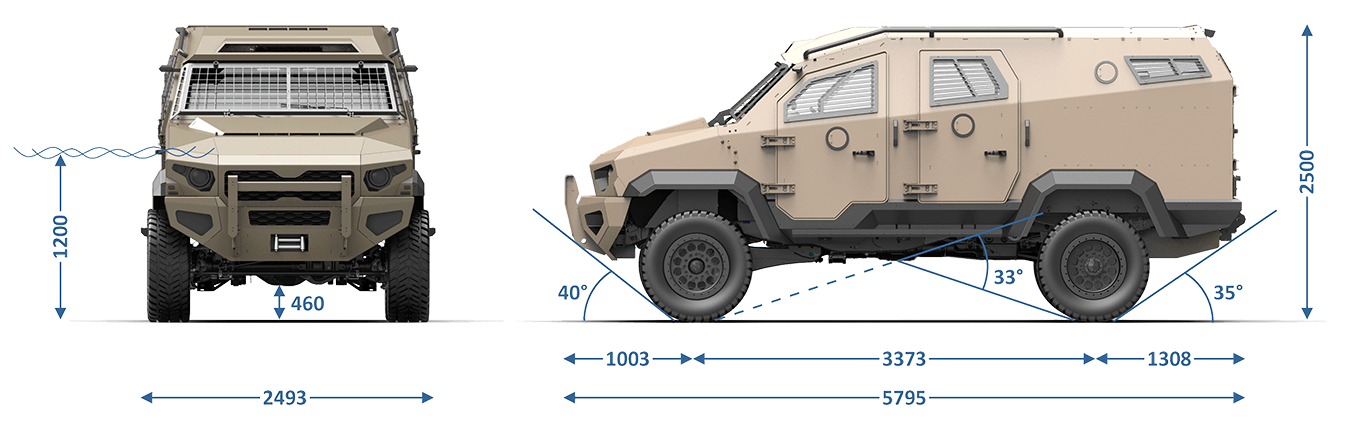

Dimensions and weights

LENGTH 5 795 mm
WIDTH 2 493 mm
HEIGHT 2 500 mm
WHEELBASE 3 373 mm
GROUND CLEARANCE 440 mm
CURB WEIGHT 9 500 kg
GVWR 13 700 kg
MAX. LOADING ON FRONT ANGLE 6 850 kg
MAX. LOADING ON REAR AXLE 6 850 kg
MAX. PAYLOAD CAPACITY 4 200 kg
APPROACH ANGLE 40º
DEPARTURE ANGLE 35º
BREAK-OVER ANGLE 33º
FRONT OVERHANG 1 003 mm
REAR OVERHANG 1 308 mm
MAX. WADING DEPTH 1 200 mm
TRENCH OVERCOMING 700 mm
VERTICAL OBSTACLE 490 mm
TURNING RADIUS 7 250 mm
TEMPARTURE OPERATION RANGE -20°C / +65°C

*All dimensions and weights have 5% tolerance.

All photos and CAD renderings on this page are for illustration purposes only.
