- Base of the vehicle - 4x4, V-shape chassis with independent construction hull, Independent portal axles
- Engine - 8.9L Inline 6-cylinder turbo-diesel
- Transmission - Automatic 6-speed
- Max. speed - 120 km/h (depends on tire limitations)
- Brakes - Pneumatic, two-circuit disc brakes with force distributor, auxiliary differential brakes, ABS
- Manual reduction gearbox (4x4) Inc. dif. Lock
- Wheels - 395x80 R20
- Operational range - up to 1000km
- A/C - Central unit
- Temperature operational range - -20°C / +60°C
- 11 Seats with blast protection - driver & commander + 9 for crew with 4-point seatbelts
- Combat-lock door system
- Front & rear hooks for towing
- Hooks for carrying by helicopter
- Side and rear footsteps
- Outside handles
- Ballistic windows
- 4-point seatbelts
- Side-view and overview cameras
- Rear camera
- Fire extinguisher for engine bay
- Front and rear stabilizers
- Composite armor solution corresponding to desired ballistic protection composed of HH, VHH steel plates, ballistic aluminum and spoil-liners
- Blast protection up to Level 3B according to STANAG 4569 AEP-55
- Standard ballistic protection of Level 3 according to STANAG 4569 AEP-55 (VPAM PM 11, GOST BR5, NIJ III)
- Add-on ballistic protection up to Level 4 according to STANAG 4569 AEP-55 (VPAM PM14)
- 3 – layer floor protection

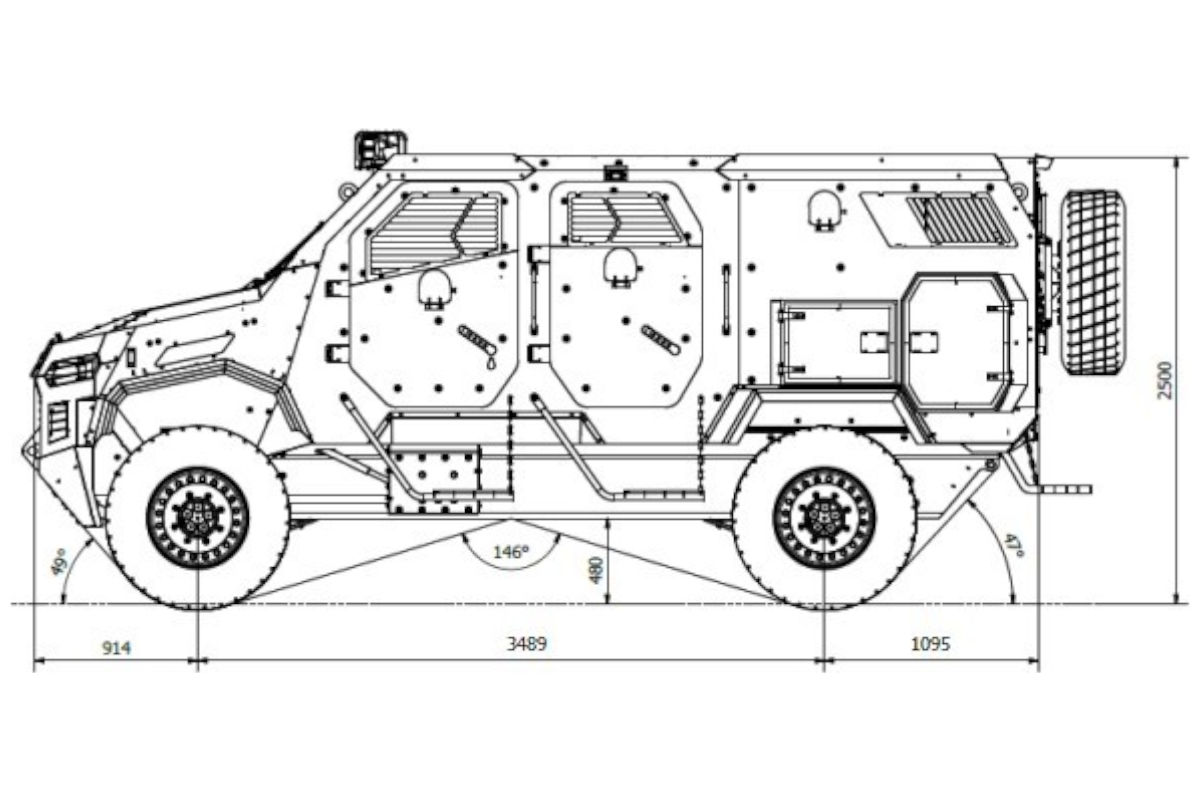

Side view

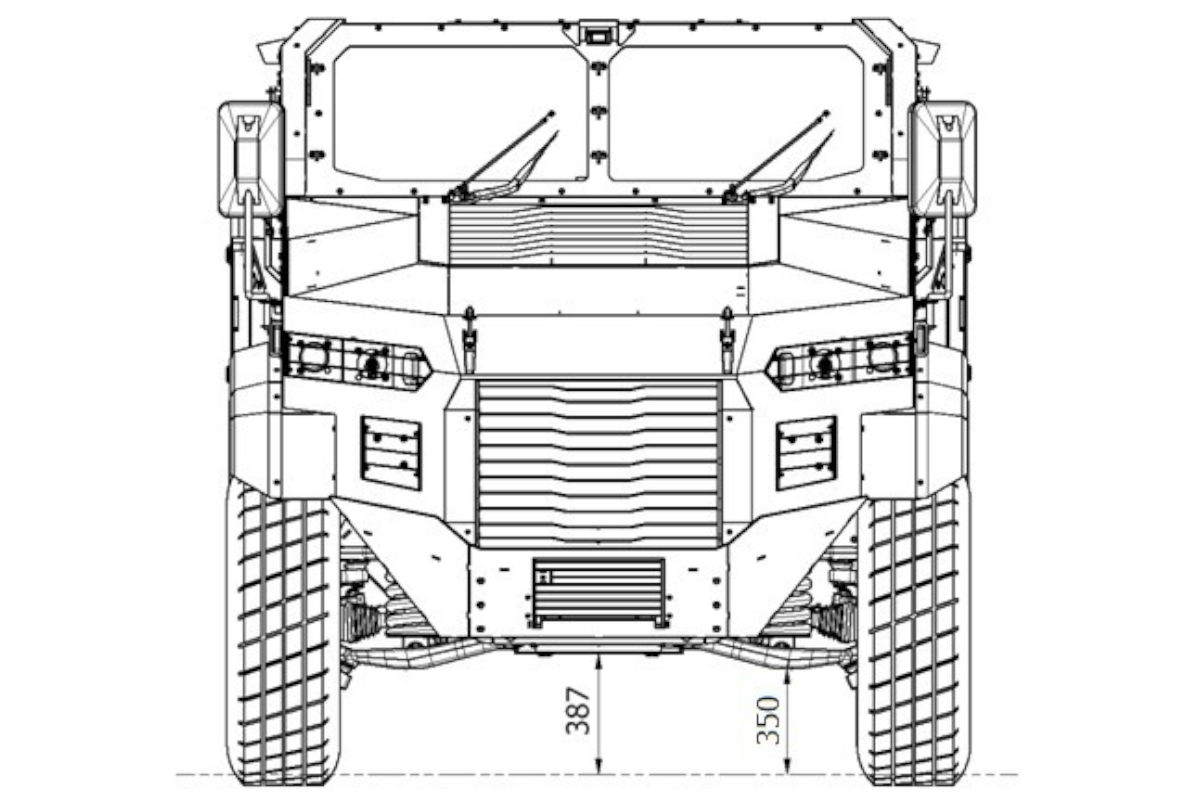

Front view

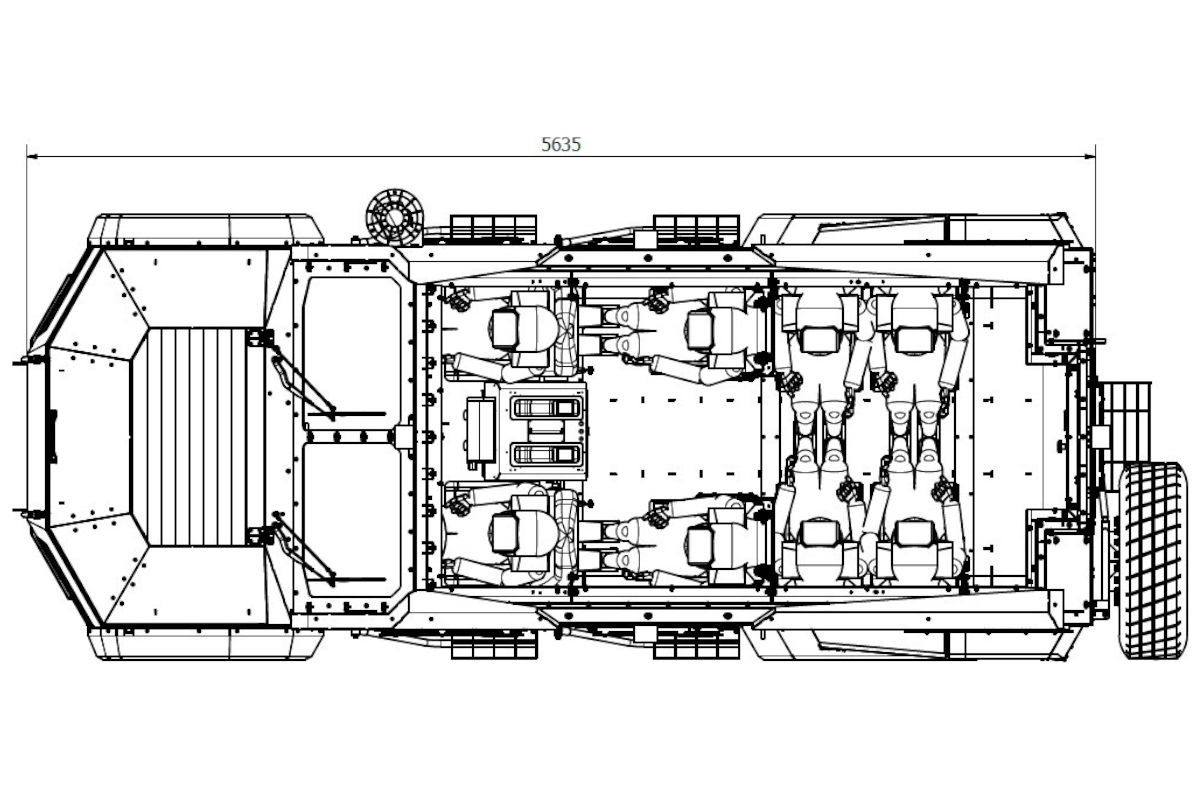

Crew arrangement

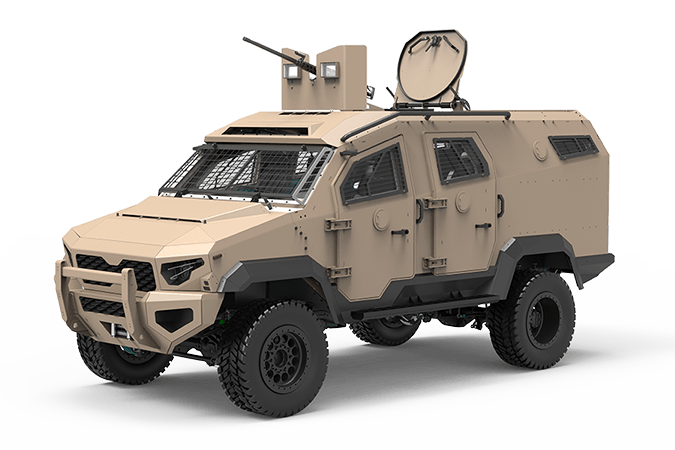

Military 360 ° mechanical turret with protection plates + harness for gunner

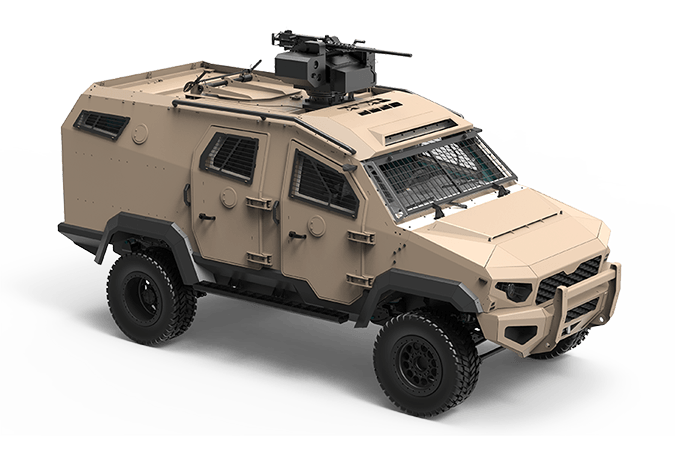

Automatic turret

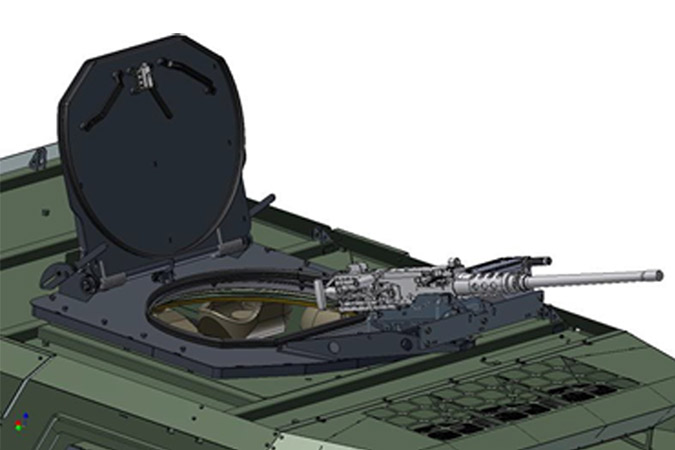

Rotatable roof hatch with machine gun rack

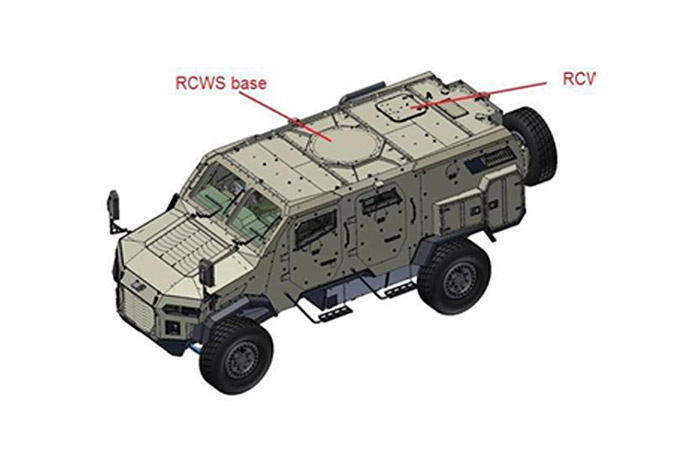

Roof hatches

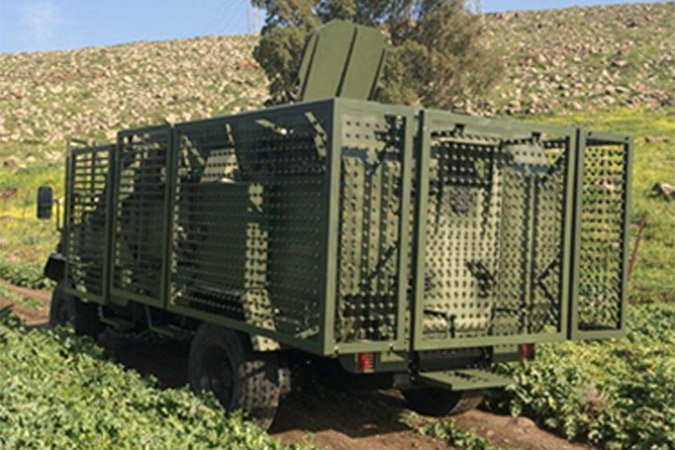

RPG net
- Operating manual
- Instructions for the operation and maintenance of selected equipment
- Instructions for running the technique
- List of spare parts, tools and accessories (equipment)
- Guidelines for complaints
- Certificate of quality and completeness of the vehicle
- Warranty
- Service book
Dimensions and weights
LENGTH | 5 760 mm ±10mm |
WIDTH | 2 540 mm ±5mm |
HEIGHT | 2 540 mm ±5mm |
WHEELBASE | 3 660 mm ±3mm |
GROUND CLEARANCE | 495 mm ±5mm |
CURB WEIGHT | 13 500 kg ±10kg |
GVWR | 18 500 kg ±10kg |
MAX. LOADING ON FRONT ANGLE | 8 500 kg |
MAX. LOADING ON REAR AXLE | 10 700 kg |
MAX. LOADING CAPACITY | 5 500 kg ±10kg |
APPROACH ANGLE | 48º ±2° |
DEPARTURE ANGLE | 48º ±2° |
BREAK-OVER ANGLE | 34º ±3° |
FRONT OVERHANG | 970 mm ±5mm |
REAR OVERHANG | 1 130 mm ±5mm |
MAX. WADING DEPTH | 1 800 mm ±10mm |
TRENCH OVERCOMING | 1 000 mm ±5mm |
VERTICAL OBSTACLE | 570 mm ±5mm |
TURNING RADIUS | 7 400 mm ±5mm |
TEMPARTURE OPERATION RANGE | -20°C / +65°C |
*All dimensions and weights have 5% tolerance.
All photos and CAD renderings on this page are for illustration purposes only.
